Create embroidery designs right on your iPad.
With StitchPencil, you can draw and edit your own embroidery designs right on your iPad. Go from your first sketch to a finished embroidery file, with a stylus and the tools you need to digitize your designs.
Hi, I'm Mika.
I love embroidery and create my own designs. Most of them started on my iPad, where I'd draw them with a stylus before moving to my computer to digitize them.
At some point, I started wondering why it had to be so complicated. Why couldn't I turn my drawing into an embroidery design right on my iPad?
So I started developing StitchPencil.
I wanted the app to feel natural to use while still offering the tools you'd expect from embroidery software. You can draw directly with a stylus, work with different stitch types, and keep editing your design whenever you need to.
StitchPencil doesn't do everything for you. You still decide how to build your design, which settings suit your fabric, and how you want it to stitch out. The app supports you with tools, presets, and a design check before export.
I develop StitchPencil on my own.
From your first sketch to a finished embroidery file
Start with a reference
Import a vector graphic (SVG) and have its paths converted into embroidery objects. You can also use a photo or another raster image as a drawing reference, or start on a blank canvas.
Draw your design
Draw running stitches, satin stitches, and fills directly with your stylus.
Make changes whenever you need to
Adjust shapes, colors, and stitch order, or change settings such as stitch density and angle later.
Check your design before stitching
Use the Design Check to look for potential issues. The Stitch Player shows the stitching sequence, including color changes.
Export for your embroidery machine
Export your finished design in a file format your embroidery machine supports. Or use the optional StitchPencil Stick to transfer it directly from your iPad to your machine.
Stitch types and design tools
StitchPencil offers a range of stitch types for your designs. It handles many settings, such as stitch length, density, underlay, and pull compensation, automatically. You can also adjust them yourself.
-
Running stitches
Choose a single running stitch, triple stitch, or bean stitch. Set the stitch length and create more complex linework, with StitchPencil working to avoid unnecessary jump stitches.
-
Satin stitches
Create satin columns with adjustable widths. With a pressure-sensitive Apple Pencil, you can also control the width as you draw. StitchPencil handles underlay, pull compensation, and tight curves automatically, with settings you can adjust as needed.
-
Fills
For larger areas, choose from fill types including tatami and contour fills. Adjust the stitch angle, density, and pattern to suit your design.
-
Sashiko patterns
Choose from ten classic sashiko patterns, including Asanoha. The patterns use running stitches, connected to avoid unnecessary jump stitches where possible.
-
Color gradients
Create soft transitions using up to three colors. Control the gradient and adjust the stitch direction to follow the shape of your design.
-
Lettering
Use the included embroidery fonts, place text along curves, or adjust individual letters. You can also import and use your own BX embroidery fonts*.
-
Cross-stitch
Create cross-stitch designs on a grid, draw with your stylus, or work from an image reference. You can also combine multiple thread colors and patterns.
-
Font workshop
Create your own embroidery fonts in the font workshop. Draw your letters, adjust their stitch settings, and save the result as a font to use in your designs. You can also export your fonts in BX format*.
* About BX fonts BX is an embroidery font format from Embrilliance. StitchPencil supports both importing and exporting BX fonts. Because StitchPencil uses its own stitch generation logic, the generated stitches and the resulting embroidery may differ from the results in Embrilliance.
Keep editing your design at any stage

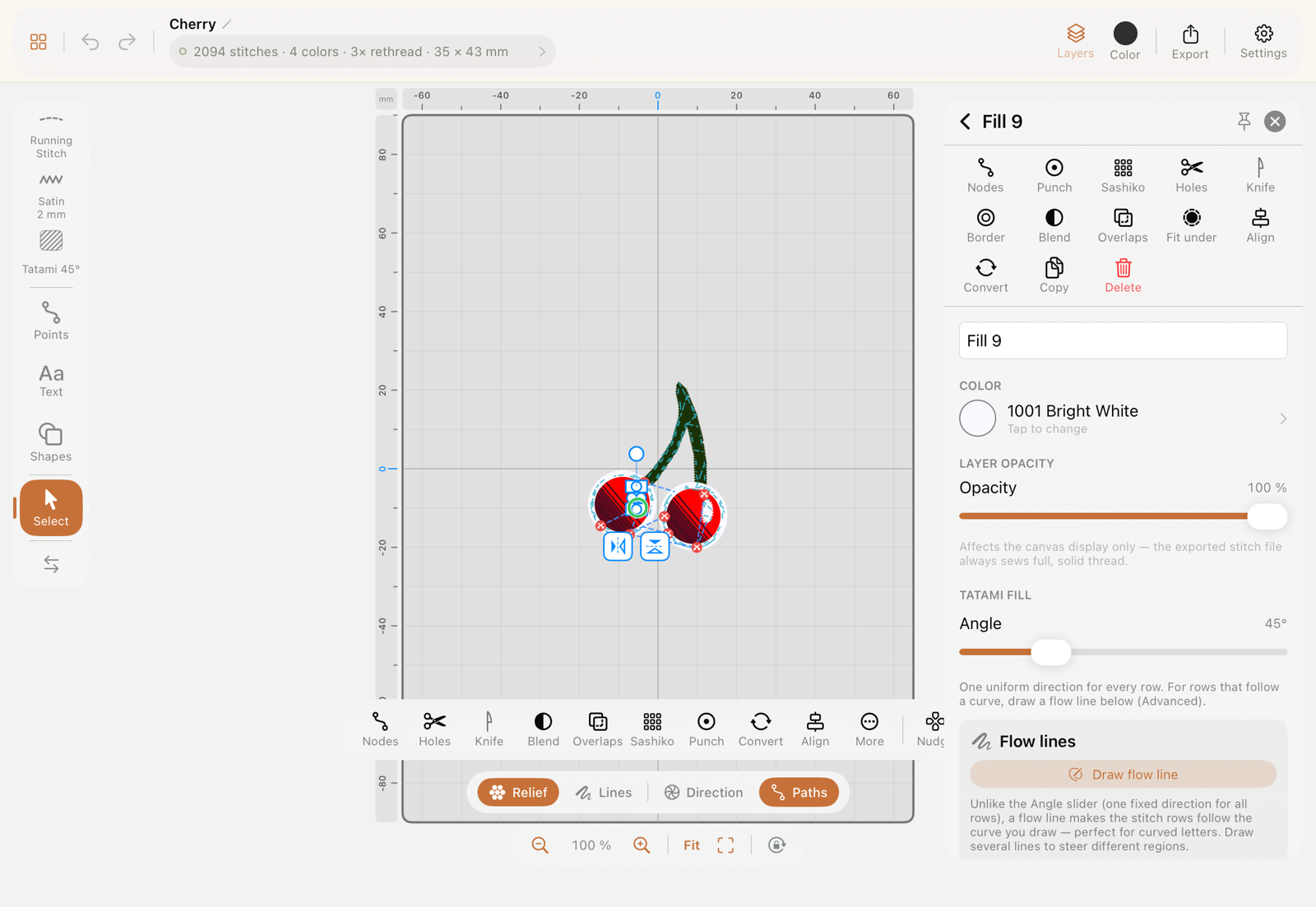

In StitchPencil, your design is made up of editable objects. You can change shapes, move nodes, and adjust settings such as stitch density, stitch angle, underlay, and colors at any time.
The stitches are automatically recalculated after each change. That lets you return to a design and make adjustments without painstakingly editing individual stitches or drawing it all over again.
Draw and edit with a stylus
Control satin width with pressure
With a pressure-sensitive Apple Pencil, you can control the width of your satin stitches as you draw. Press harder to make the satin column wider. You can also set the width manually.
Draw straight lines
Hold your stylus still for a moment at the end of a line to straighten it automatically. Draw precise lines without selecting another tool.
Edit lines and shapes later
Continue an unfinished line later or edit its nodes at any time. You can keep adjusting curves and shapes after drawing them.
Use gestures for common actions
Use two fingers to undo and three to redo. If your stylus supports the double-tap gesture, you can use it to switch tools.

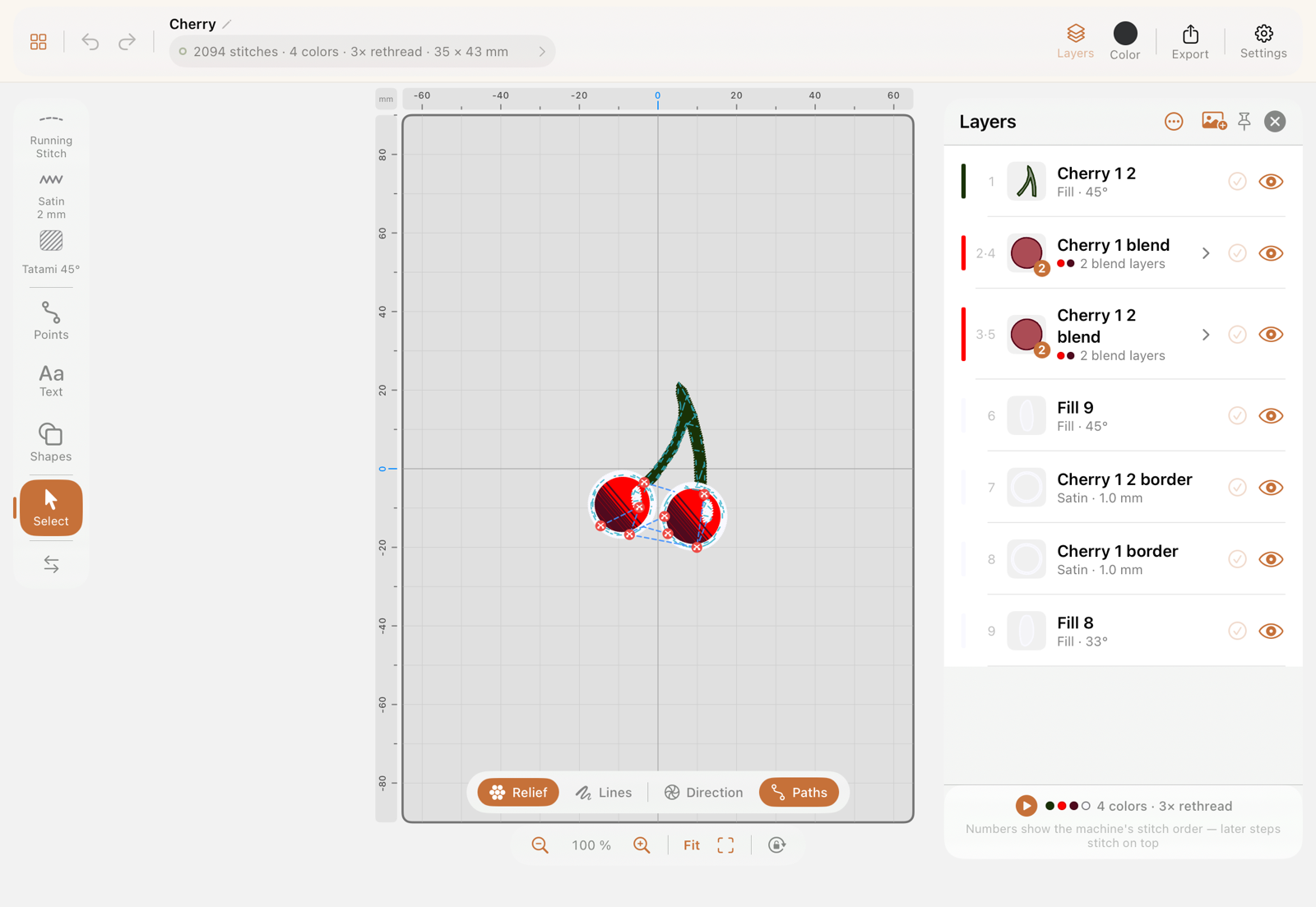

Set the stitch order
Choose the order in which objects are stitched by tapping them in your preferred sequence. StitchPencil applies that order and flags potential issues.

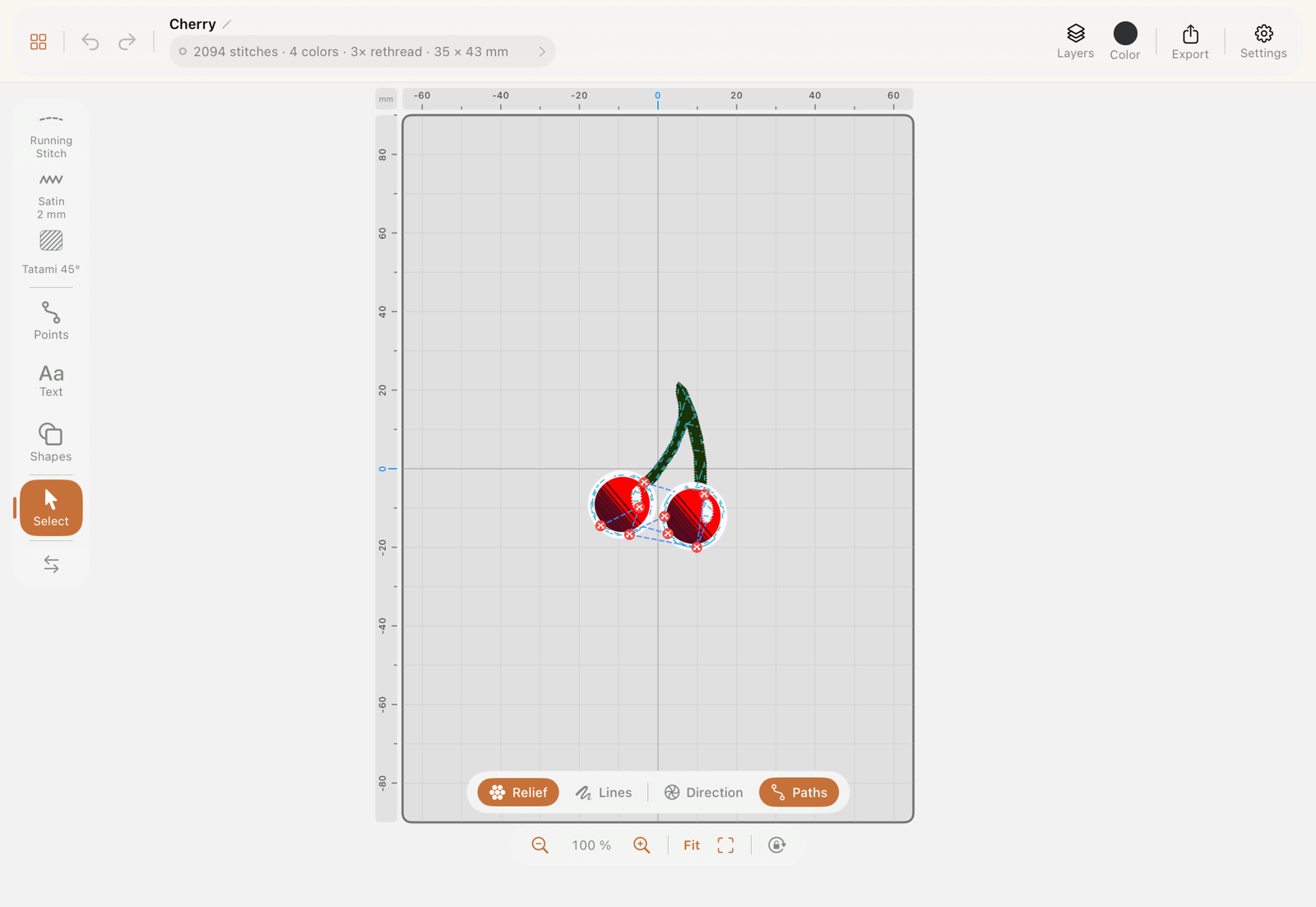

Preview your stitches
View your design as a drawing or as a realistic stitch preview. You can also display stitch directions.

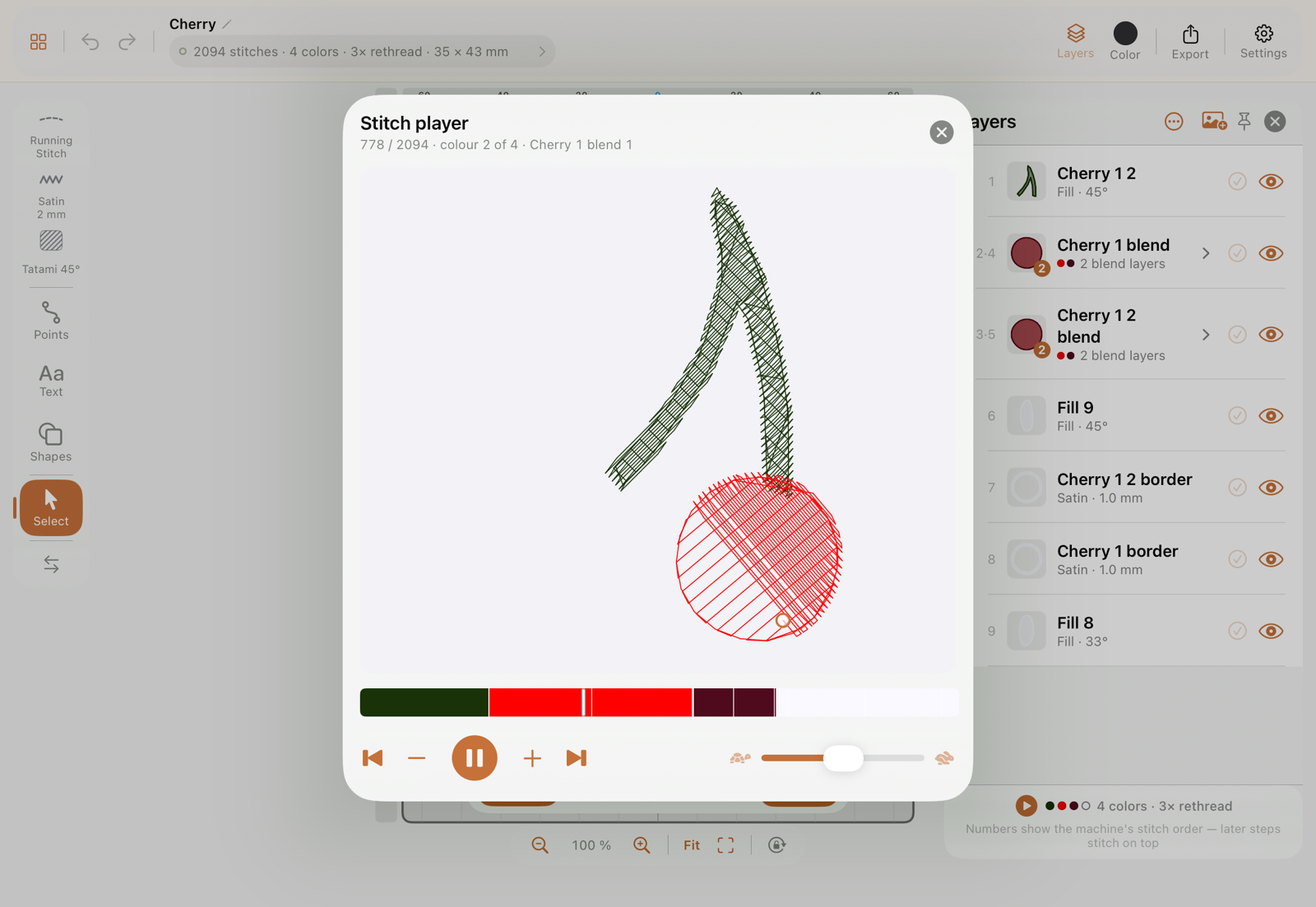

Watch your design stitch by stitch
The Stitch Player lets you preview how your design will stitch out. Play the full sequence, select individual color blocks, or jump to a specific point.
Color blocks are displayed in proportion to their stitch count, making it easy to spot a color change that involves only a few stitches. You can also view jump stitches and the actual size of your design.
Send embroidery files directly to your machine
The optional StitchPencil Stick lets you transfer embroidery designs directly from your iPad to your embroidery machine, without moving a USB drive back and forth between the two.
Plug the StitchPencil Stick into your machine's USB port and leave it there. After the initial setup, you can transfer designs from StitchPencil over Bluetooth. Your embroidery machine recognizes the Stick as a standard USB drive.
You can also see which designs are stored on the Stick from within StitchPencil and delete files you no longer need.
The StitchPencil Stick uses a small, inexpensive circuit board that you can buy yourself. I provide the firmware and setup instructions free of charge. Sending designs from StitchPencil is included in the export unlock.
Work with existing graphics and embroidery files
You don't have to draw every design from scratch. StitchPencil can import existing graphics and embroidery files, giving you several ways to reuse or edit them.
-
Vector graphics
Import SVG files and convert their paths and shapes into editable embroidery objects. Outlines can become running or satin stitches, while closed shapes can become fills.
-
Machine embroidery files
You can import and edit finished machine embroidery files—the files your embroidery machine reads. StitchPencil attempts to reconstruct editable objects from the existing stitches. Results vary depending on the file.
StitchPencil supports machine embroidery files, but not project files from other embroidery programs, such as EMB from Wilcom/Hatch or ART from BERNINA.
-
Thread colors
StitchPencil includes thread catalogs from manufacturers such as Madeira, Isacord, Sulky, and Brother. With around 1,900 thread colors, you can assign specific threads to your designs.
-
Photos and drawing references
Use photos and other raster images as references on your canvas. Move, resize, and lock them as needed while drawing your embroidery design over them.
Fewer color changes while stitching
On a single-needle embroidery machine, every color change means changing the thread by hand. That can take time, especially with designs that use many colors.
If you choose to, you can have StitchPencil optimize the stitch order to reduce the number of color changes. It takes overlaps and the order of visible elements into account to preserve the finished design's appearance.
You start the optimization yourself. Then you can review the result and make further adjustments to the order as needed.
Export your design for your next step
When your design is ready, you can export it in several formats. StitchPencil offers options for your embroidery machine, further editing in other programs, or preview images for your shop.
-
For your embroidery machine
Export your design in a machine embroidery format such as DST, PES, JEF, VP3, or EXP. Choose a format your machine supports. You can also transfer your design directly to the optional StitchPencil Stick.
-
For other programs and uses
Export SVG, EPS, or DXF files for further editing or to use with a cutting machine. Use PDF for documentation, PNG for preview images, and MOV for animations of the stitching sequence.
-
Save your editable projects
StitchPencil saves your projects in its own
.hoopformat so you can reopen and edit them in StitchPencil later. The file format's technical specification is openly documented and publicly available.
StitchPencil for schools and educational institutions
StitchPencil is also available as a separate app for schools, colleges, universities, and other educational institutions. It has the same features as the regular app, including export, with no additional in-app purchases.
-
For the classroom
StitchPencil Education is designed for educational institutions that use iPads in the classroom and manage their apps centrally. The app can be deployed to student and teacher devices.
-
Distribution through Apple School Manager
StitchPencil Education has already been approved by Apple as a Custom App and is distributed through Apple School Manager or Apple Business. It isn't publicly listed on the App Store and is made available specifically to your institution.
-
How to get access
To use StitchPencil Education at your institution, email me your institution's name, its Organization ID from Apple School Manager or Apple Business, and a contact person. I can then make the app available to your institution.
Contact: support@stitchpencil.app. Available to educational institutions in Germany, Austria, and Switzerland. Other countries on request.
Good to know
-
Try it for free. Unlock export with a one-time purchase.
One-time export unlock. No subscription.
Download StitchPencil for free and take your time exploring its features. You only need the one-time unlock when you're ready to export your designs. There are no recurring app fees. Check your local App Store for the price in your region.
-
Your projects stay on your iPad
StitchPencil doesn't require an account or a cloud connection. Your designs are stored locally on your iPad. There is no automatic syncing, usage analytics, or telemetry.
-
Requirements
StitchPencil requires an iPad running iPadOS 18 or later. A compatible stylus is recommended for drawing. A pressure-sensitive Apple Pencil also lets you control satin width with pressure, but it isn't required.
-
Documentation and help
The online manual includes instructions, feature explanations, and more information about StitchPencil.
Questions, ideas, or problems?
If you have a question about StitchPencil, something isn't working as expected, or you have an idea for the app, feel free to get in touch.
For technical issues, a screenshot and, if possible, the affected .hoop file help me understand what happened.
Your message comes directly to me. I read every message and do my best to reply promptly.
Contact: support@stitchpencil.app
